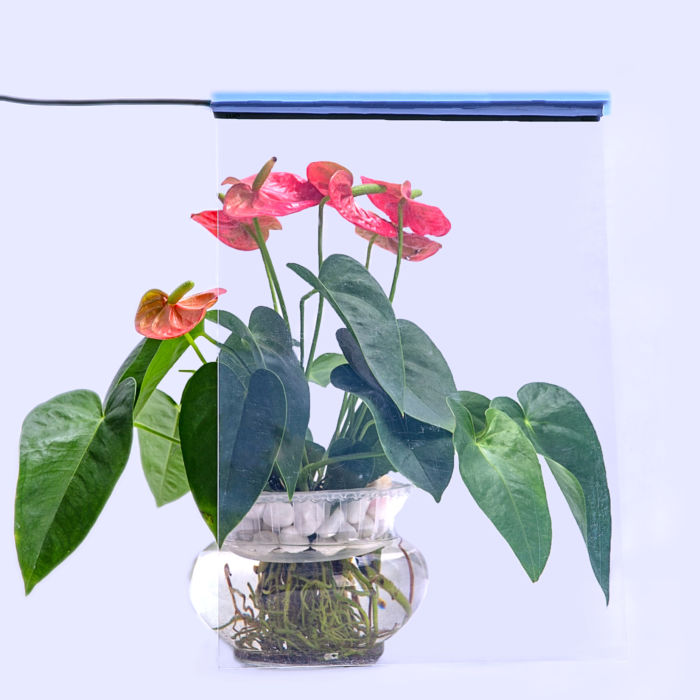

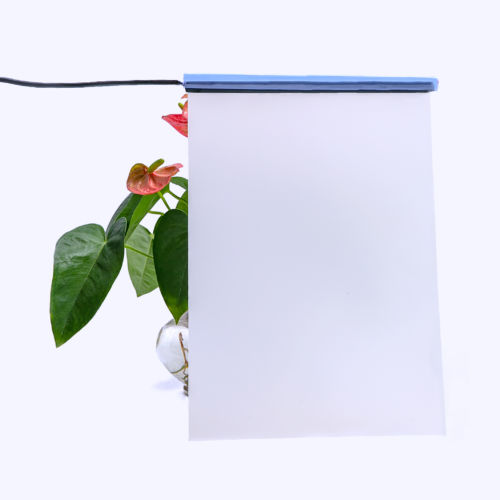

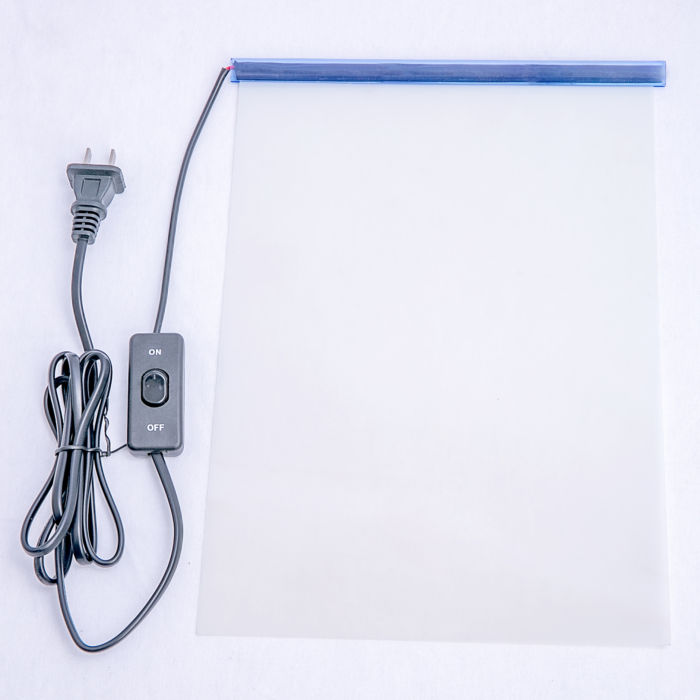

With a electrostatic glue at rear side of the non-adhesive smart film, self adhesive smart film can be easily peel and stick to the existing glass. A simple ON – OFF switches the film from being clear (transparent) to frosted (opaque).
With a electrostatic glue at rear side of the non-adhesive smart film, it can be easily peel and stick to the existing glass. A simple ON – OFF switches the film from being clear (transparent) to frosted (opaque).Widely used on glass windows in commercial office, home residence, hotel bathrooms,monitoring centers,etc. People can enjoy more open space as well as privacy with this smart privacy film.
Uniteglass offered self-adhesive privacy glass film is a finished one with bus bar and wiring which can directly installed on glass,a remote installation or living teaching support is offered to our customers for begining of the business.

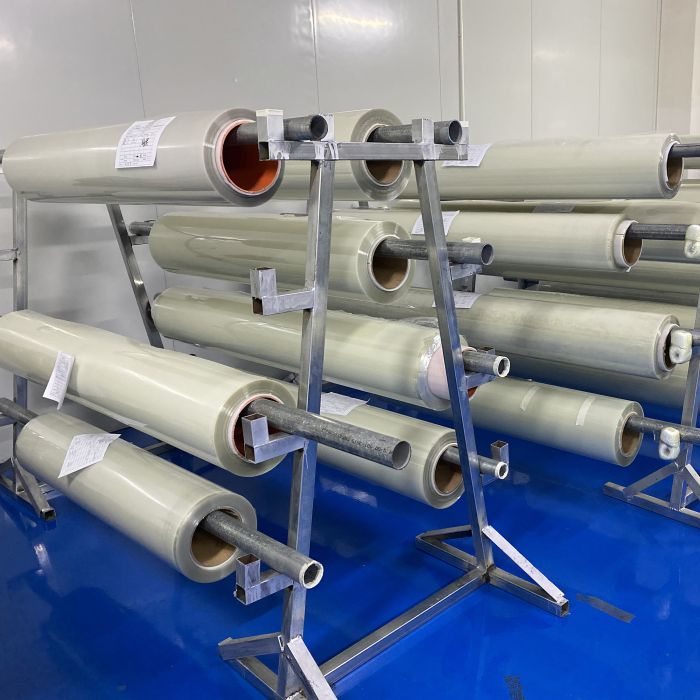

Smart Glass Film Rolls withWidth of 1/1.2/1.5/1.8M to our distributors.
Advantage of smart pdlc film roll:
1,UV resist and privacy, Resist 99.5% of UV rays in off state,
2,Multi-functional: Privacy,Shading, cooling, energy saving and environmental protection;
3,Energy efficient, resist 86.9%% heat radiation and electricity saving
4,widely usage: it can be used on clear glass for commercial or residential usage indoor
5,Easy installation. Just peel and stick with wirings and busbar
6, Long life time: more than 10 years usage
| Item | Mode | Specification | Testing Standard | |||||
| optical parameters | Visible Light Transmittance | ON | >85% | GB/T 2410-2008 spectrophotometer |
||||
| OFF | >60% | |||||||
| Parallel Light Transmittance | ON | >66% | GB5317.2-2002 | |||||
| OFF | <1.5% | |||||||
| Haze | ON | <4% | GB/T 2410-2008 spectrophotometer |
|||||
| OFF | >92% | |||||||
| Visual Angle | ON | >140° | Visual | |||||
| Electrical Parameter | Working Voltage | ON | 48V AC | Multimeter | ||||
| Sturation Voltage | ON | <36V | ||||||
| Response Time | OFF-ON | <200ms | Liquid Crystal Multi-parameter Electrical Measuring Instruments | |||||
| ON-OFF | <10ms | |||||||
| Power Consumption | ON | <5W/M | Multi-parameter Electrical Measuring Instruments | |||||
| Mechanical Parameter | Thickness | 0.4-0.5mm | / | |||||
| Max Width | ≤1.6M | / | ||||||
| Coild Material Size | 1/1.2/1.5/1.8M(W)*50/100/200M (L) | / | ||||||
| Adhesion | 50g/mm | |||||||
| Enviromental Parameter | Working Temperature | —20℃ —70℃ | Constant Temperature and Humidity Testing Machine | |||||
| Storage Temperature | —20℃ —80℃ | |||||||
| Service Life | (ON)>10 years | GB18910.5-2008 | ||||||
| Switch Frequency | >80 million times | |||||||
A video to know China TOP Rated original Smart Film manufacturer from technology to PDLC film delivery!!!
1,ITO film coating done by in-house Smartweb roll to roll coating system Imported from Germany Applied Materials,quality stable.Instead of other factory outreach ITO Film.
2,Liquid crystal proportioning is our R&D patent done by in house,that makes PDLC film high transmittance over 85%.
3,Dust-free, thermostatic workshop manufactured PDLC film,prevent no dust might occurred quality problem,even though in dry cold weather.
How to cut PDLC film and making busbar?
Smart Film in Banking System!!

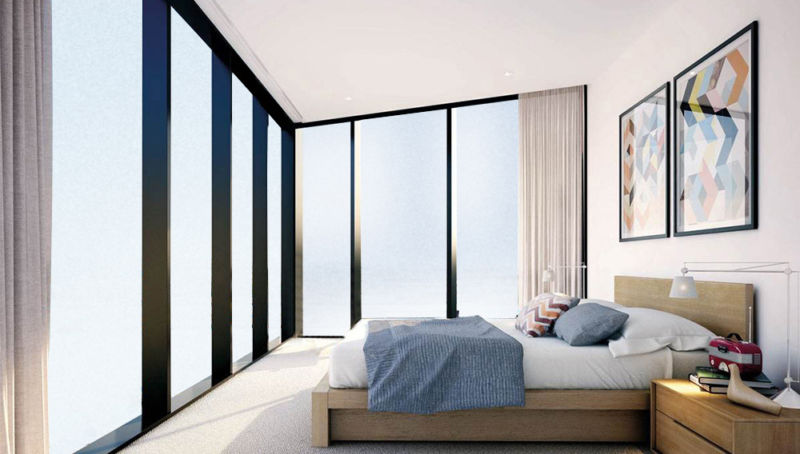

is easily installed at offices,home residence,shopping windows,hospitals,hotels.

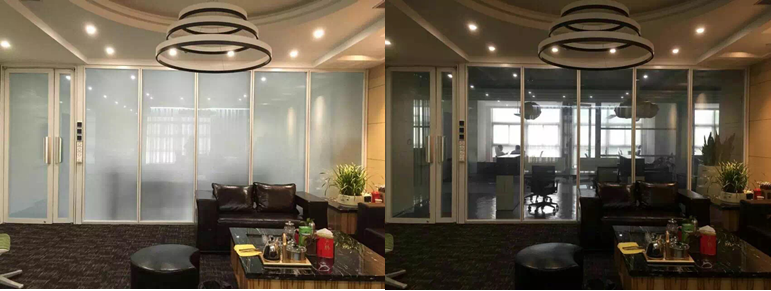

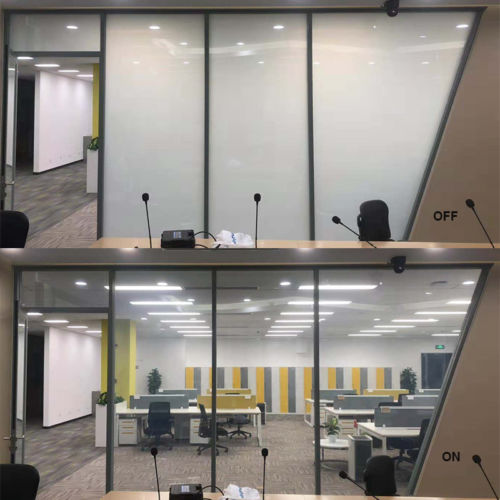

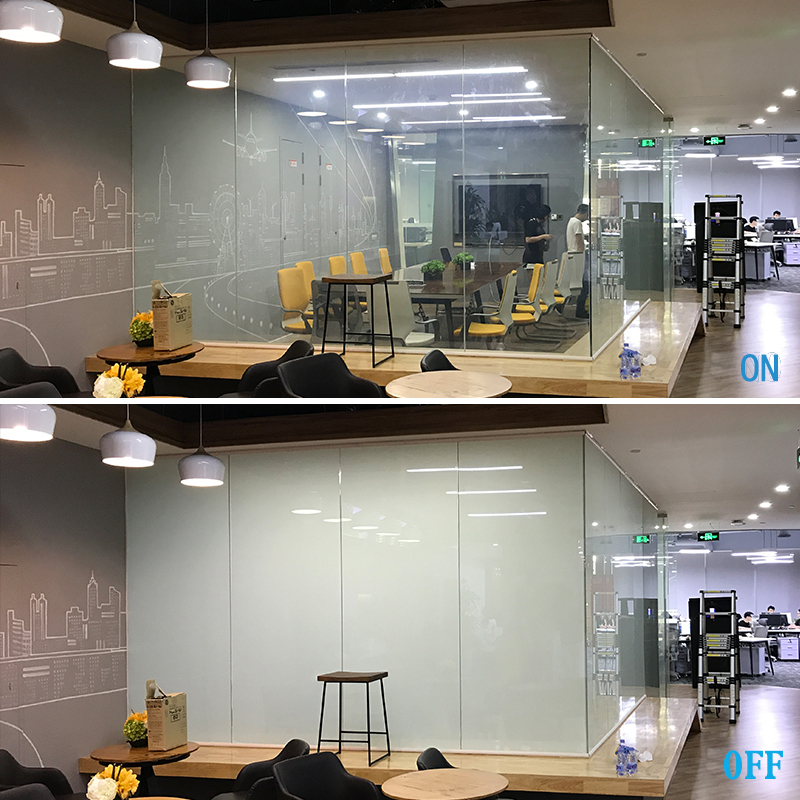

self adhesive smart film in office for privacy

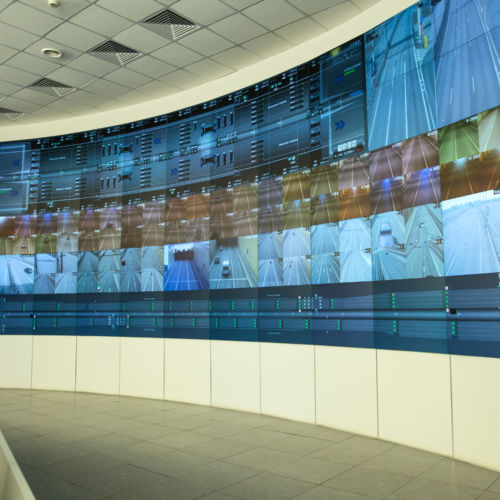

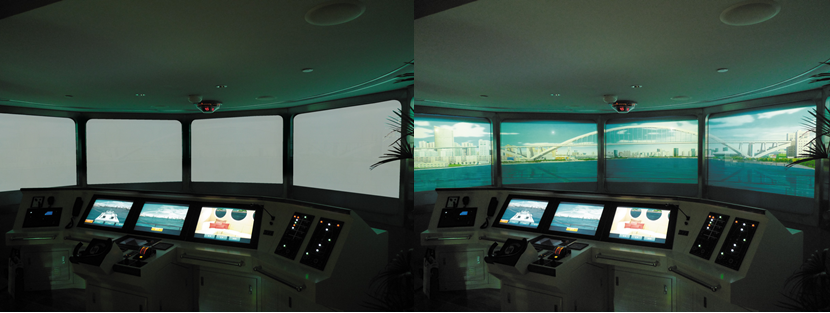

pldc film used in monitoring center

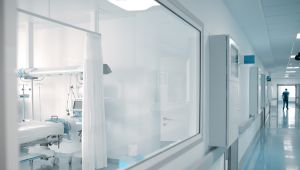

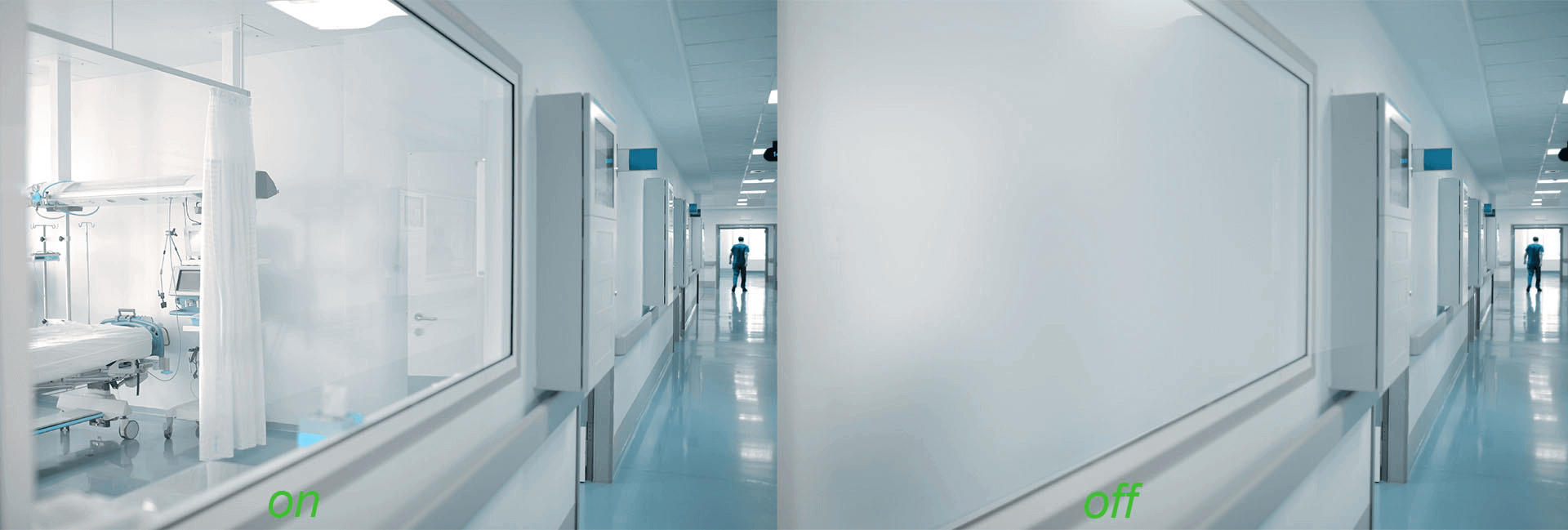

hospital windows with electric smart film
