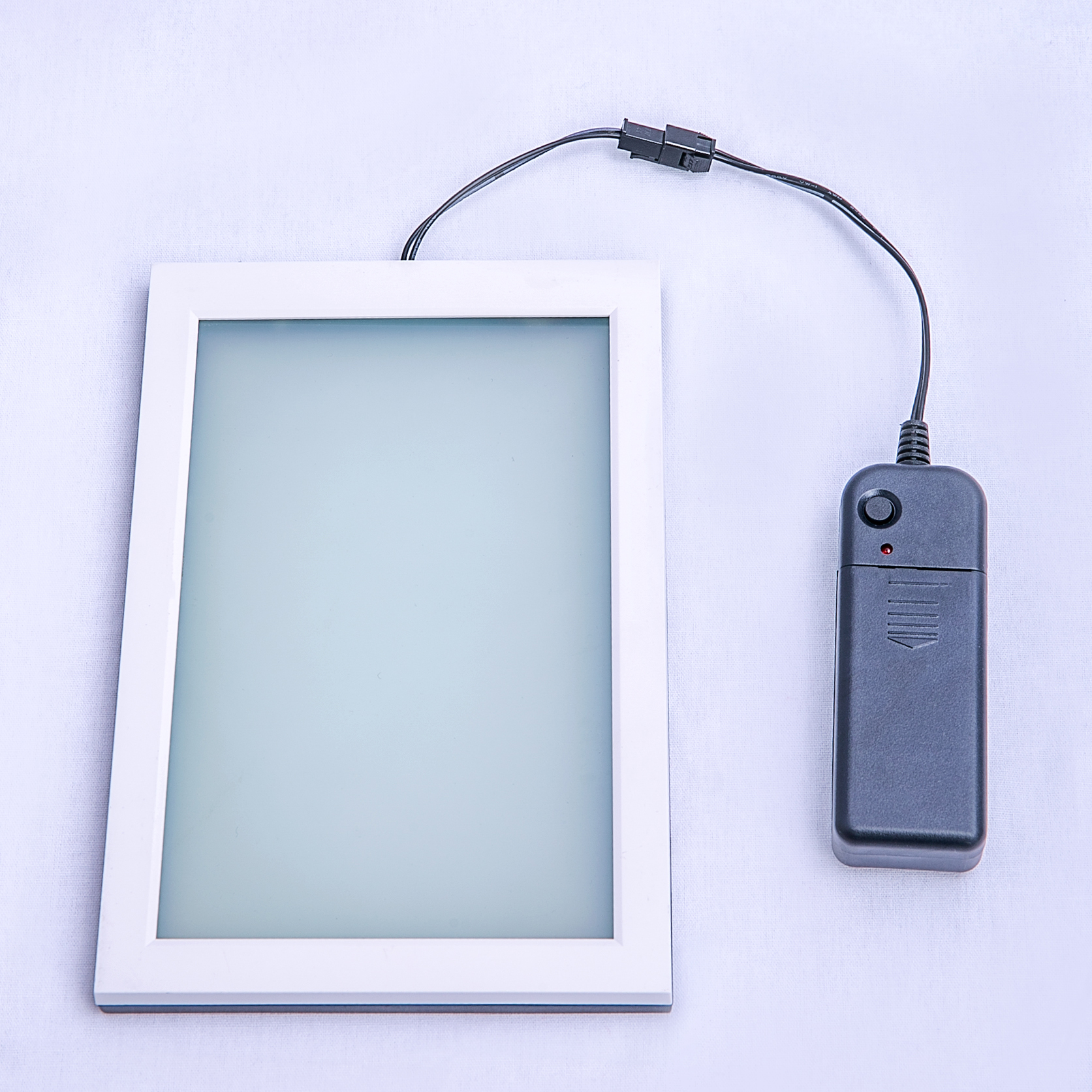

Switchable Privacy Glass is a electric dimming glass turns from clear to opaque with a switch,widely used on doors,windows,projection screen.

  • Heat insulation:Resist more than 99% of UV and 80% of infrared, heat insulation, energy saving.
  • explosion proof:Using tempered laminated glass
  • Smart controls:a various remote control,wifi,app, dimming control optional.
  • Easy installation:with our smart glass technology, any glazier can installation it.
  • From China switchable glass manufacturers

Description

Switchable Privacy Glass Electric

Smart glass is a laminated glass with polymer dispersed liquid crystal(PDLC) film sandwiched between two layers of tempered glass. We provide complete smart glass finished with wiring.

it can be directly installed both commercial and residential in a variety of sizes, shapes. The smart glass switch on from clear to opaque when off(or dim anywhere in between)

Glass thickness optional: 5mm,6mm,8mm or 10mm

Glass optional: float glass, tempered glass; ultra-white glass, tinted glass

Glass universal size:1200mm、1500mm、1800mm、2000MM

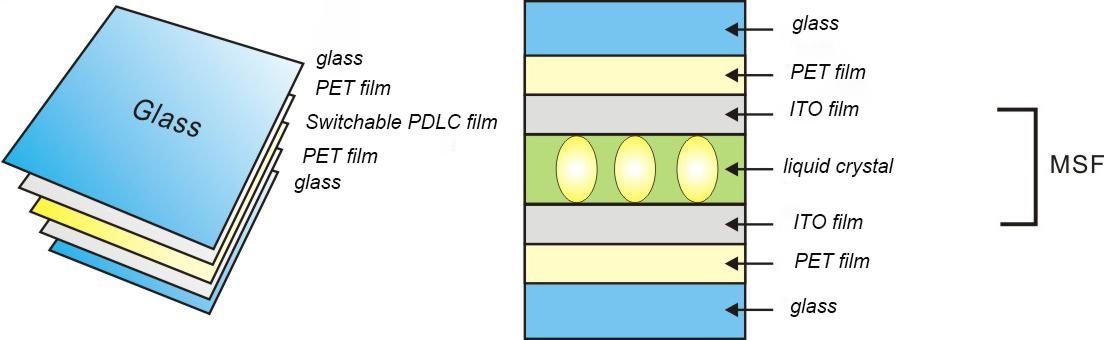

Switchable Glass Structure:

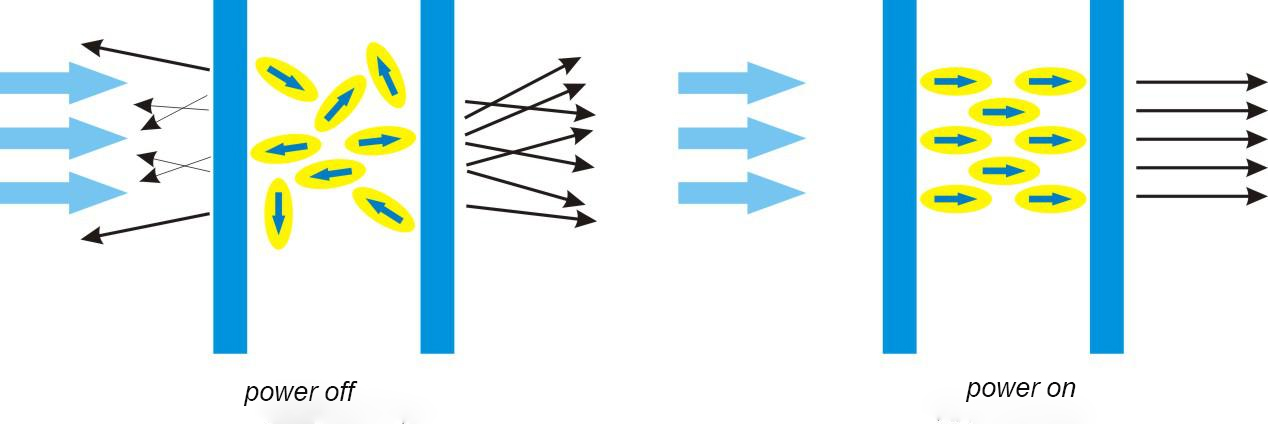

Switchable glass working Principle:

When powered off, the liquid crystal moleculer are in disordered array, the pdlc film is opaque.

When powered on, the liquid crystal moleculers in aligned,making the pdlc film clear.

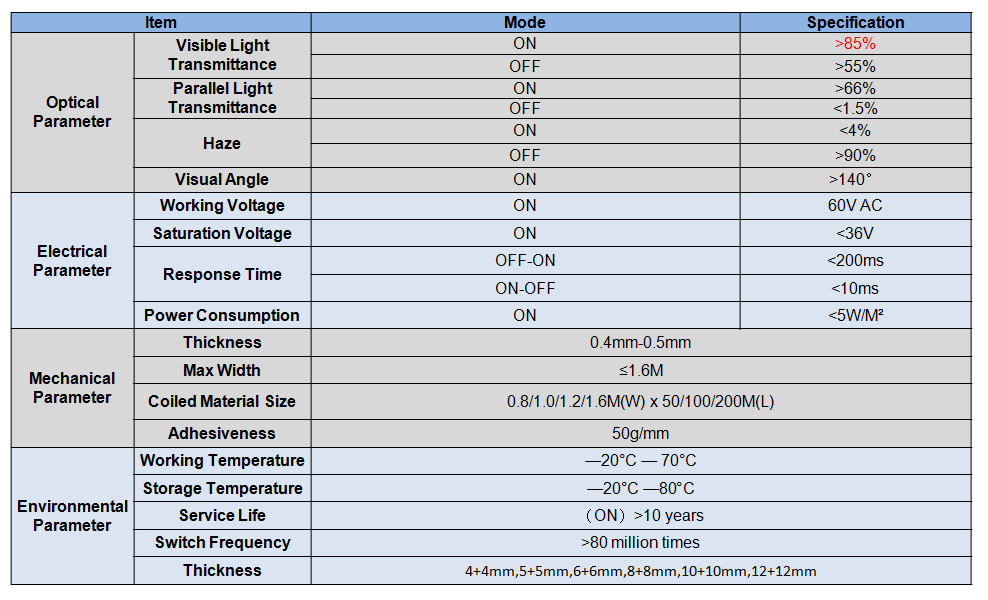

Switchable Glass Specifications:

Switchable Glass For Hotels Shower Room Projects

Switchable Privacy Glass

is glass that changes from clear to opaque with a on/off button,it can be customized into any shape. They’re widely used in hotel bathroom windows,dust-free factory windows,hospitals, Government control room,commercial buildings,etc.

Advantage of Smart Glass:

Privacy Partition: within 1/10 seconds switch back and forth,changing from clear to opaque

Interactive Projection:Dimming smart glass worked as a projection screen with a projector

Safety:with laminated tempered glass,explosion proof

UV Resist:Block more than 99% of UV and 80% of infrared, heat insulation, reduce energy consumption.

Smart Control: Except universal switch and remote controller,a Wifi,app,dimmer is offered.

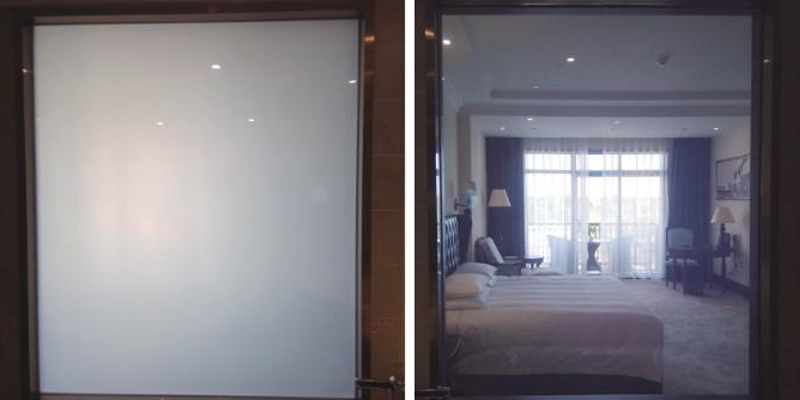

smart glass applied bath room windows and doors

bathroom windows switchable glass

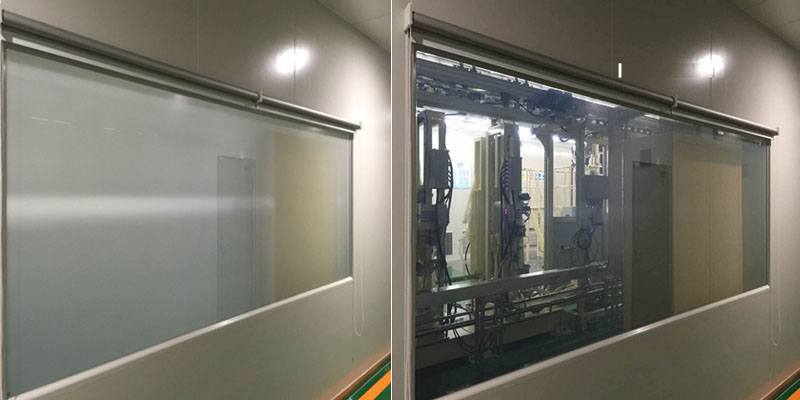

 switchable privacy glass in dust-free factory

switchable glass windows in factory workshop

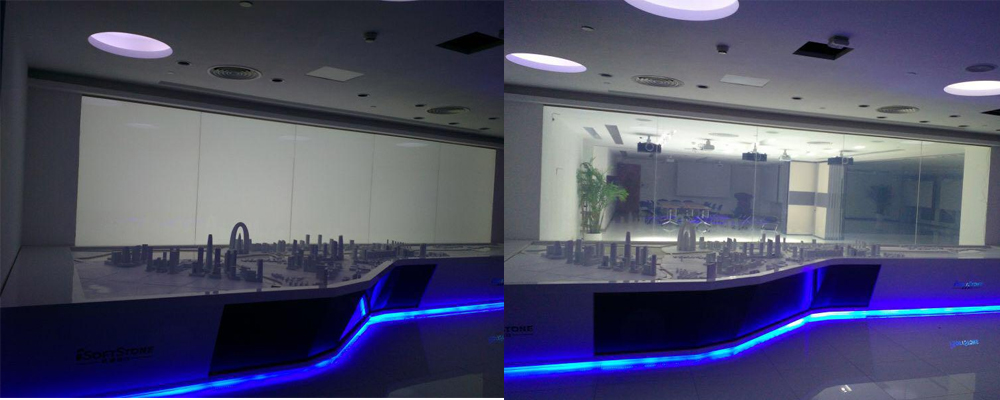

A projection screen used by switchable dimming glass

switchable glass projection screen
